JMTP4435A Datasheet, Mosfet, JIEJIE

JMTP4435A Features

  • Mosfet
  • VDS=-30V, ID=-10A RDS(ON) <23mΩ @ VGS = -10V RDS(ON) <34mΩ @ VGS = -4.5V
  • Advanced Trench Technology
  • Excellent RDS(ON) and Low Gate Charge
  • Lead fr

PDF File Details

Part number:

JMTP4435A

Manufacturer:

JIEJIE

File Size:

665.68kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. JMT P-channel Enhancement Mode Power MOSFET Features

  • VDS=-30V, ID=-10A RDS(ON) <23mΩ @ VGS = -10V RDS(ON) <34mΩ @ VGS = -

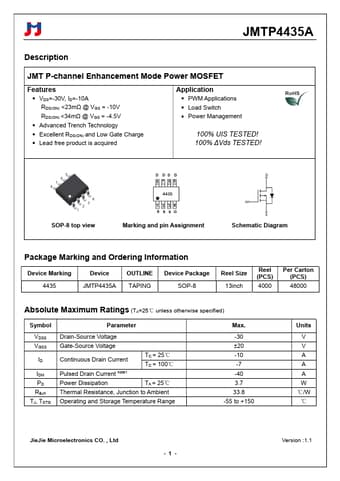

  • Datasheet Preview: JMTP4435A 📥 Download PDF (665.68kb)
    Page 2 of JMTP4435A Page 3 of JMTP4435A

    JMTP4435A Application

    • Applications
    • Load Switch
    • Power Management 100% UIS TESTED! 100% ΔVds TESTED! SOP-8 top view Marking and pin Assignment Schema
