SM1K33CF, SM1K5CF - Transient Voltage Suppressor

SM1K33CF Description

JIEJIE MICROELECTRONICS CO., Ltd SM1KxxCF Series Transient Voltage Suppressor Rev.1.6 .
13 inch reel pack Information furnished in this document is believed to be accurate and reliable.

SM1K33CF Features

* Excellent clamping capability.
* Low profile package and low inductance.
* High peak pulse voltage capability at 1.2/50μs-8/20μs@2Ω waveform.
* Fast response time: typically less than 1.0ps from 0V to VBR min.
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.

SM1K33CF Applications

* in order to optimize board space.
* UL 497B item recognized. (File No. : E480698).
* UL 1449 item recognized. (File No. : E494389).
* IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact). SMBF Symbol ABSOLUTE MAXIMUM RATINGS (TA=25℃, RH=45%-75%, unless otherwise noted) Parameter Storage temp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM1K33CF, SM1K5CF. Please refer to the document for exact specifications by model.

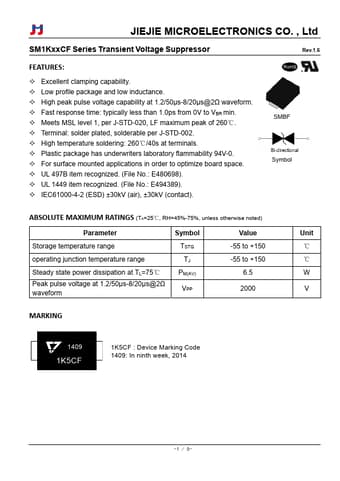

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM1K33CF, SM1K5CF
Manufacturer
JIEJIE
File Size
320.06 KB
Datasheet
SM1K5CF-JIEJIE.pdf
Description
Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SM1K33CF, SM1K5CF.
Please refer to the document for exact specifications by model.
