HBR20100D - SCHOTTKY BARRIER DIODE

HBR20100D Description

R SCHOTTKY BARRIER DIODE HBR20100D MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 20（2×10）A 100 V 175 ℃ 0.72V （@Tj=125℃） * * .
of Changes (Rev.

HBR20100D Features

* Common cathode structure
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product DPAK ORDER MESSAGE Order codes Marking HBR20100DZ HBR20100D HBR20100DZR HBR20100D HBR20100DHF HBR2010

HBR20100D Applications

* High frequency switch power supply
* Free wheeling diodes, polarity protection applications TO-22O TO-263 TO-22OHF TO-262
* ，
* ，

📥 Download Datasheet

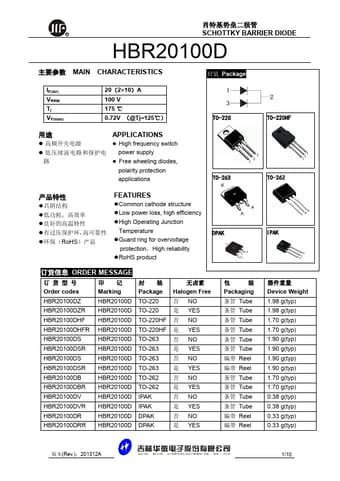

Preview of HBR20100D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBR20100D
Manufacturer
JILIN SINO
File Size
778.79 KB
Datasheet
HBR20100D-JILINSINO.pdf
Description
SCHOTTKY BARRIER DIODE
