HBR20100F, HBR20100, SCHOTTKY BARRIER DIODE

R SCHOTTKY BARRIER DIODE HBR20100 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 20（2×10）A 100 V 175 ℃ 0.7V （@Tj=125℃） * * .

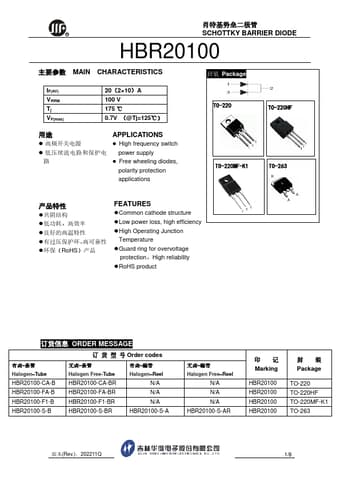

datasheet Preview Page 1 from Datasheet4u.com

HBR20100-JilinSino.pdf

HBR20100F Datasheet Preview — This datasheet PDF includes multiple part numbers: HBR20100F, HBR20100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HBR20100F, HBR20100

Manufacturer:

Jilin Sino

File Size:

755.66 KB

Description:

SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: HBR20100F, HBR20100.
Please refer to the document for exact specifications by model.

Features

* Common cathode structure
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube - Halogen Free-Tube - Halogen-Reel HBR20100-CA-B HBR20100-CA-B

Applications

* High frequency switch power supply
* Free wheeling diodes, polarity protection applications TO-22O TO-22OHF TO-220MF-K1 TO-263
* ，
* ，
