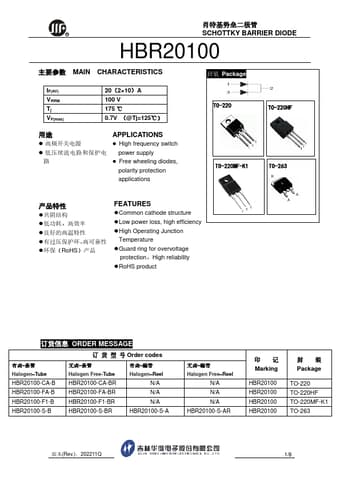

HBR20100 Datasheet, diode equivalent, Jilin Sino

HBR20100 Features

• Diode
• Common cathode structure
• Low power loss, high efficiency
• High Operating Junction Temperature
• Guard ring for overvoltage protection，High reliability <

PDF File Details

Part number:

HBR20100

Manufacturer:

Jilin Sino

File Size:

755.66kb

Download:

📄 Datasheet

Description:

Schottky barrier diode.

HBR20100 Application

• Applications
• High frequency switch power supply
• Free wheeling diodes, polarity protection applications TO-22O TO-22OHF TO-220
