HBR2200 - SCHOTTKY BARRIER DIODE

Datasheet Summary

Features

  • Axial Lead Rectifier.
  • Low power loss, high efficiency.
  • High Operating Junction Temperature.
  • Guard ring for overvoltage protection，High reliability.
  • RoHS product ORDER.

📥 Download Datasheet

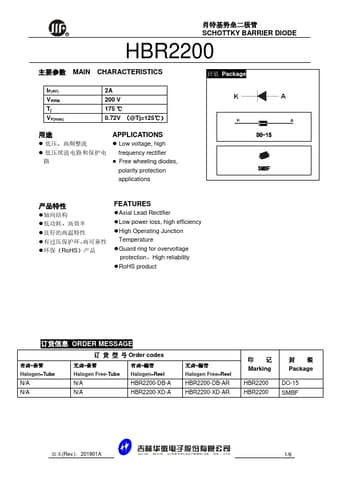

Datasheet preview – HBR2200

Datasheet Details

Part number HBR2200
Manufacturer JILIN SINO
File Size 480.91 KB
Description SCHOTTKY BARRIER DIODE
Datasheet download datasheet HBR2200 Datasheet
Additional preview pages of the HBR2200 datasheet.

📁 Similar Datasheet

  • HBR20100CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR20150S - Schottky Barrier Rectifier (INCHANGE)
  • HBR20200 - SCHOTTKY BARRIER DIODE (Tianjin Micro Electronic)
  • HBR20200CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR10100CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR10150CS - Schottky Barrier Rectifier (INCHANGE)
  • HBR10150CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR10200 - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR10200CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • HBR15100 - Schottky Barrier Rectifier (Inchange Semiconductor)
Other Datasheets by JILIN SINO

Full PDF Text Transcription

Click to expand full text
R SCHOTTKY BARRIER DIODE HBR2200 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 2A 200 V 175 ℃ 0.72V （@Tj=125℃）  、  APPLICATIONS  Low voltage, high frequency rectifier  Free wheeling diodes, polarity protection applications DO-15 SMBF   ，   ，  （RoHS） FEATURES Axial Lead Rectifier Low power loss, high efficiency High Operating Junction Temperature Guard ring for overvoltage protection，High reliability RoHS product ORDER MESSAGE Order codes - Halogen-Tube - Halogen Free-Tube - Halogen-Reel N/A N/A HBR2200-DB-A N/A N/A HBR2200-XD-A - Halogen Free-Reel HBR2200-DB-AR HBR2200-XD-AR Marking Package HBR2200 HBR2200 DO-15 SMBF (Rev.
