2450AT18A100 Datasheet - Johanson Technology

2450AT18A100 Mini 2.45 GHz Antenna

"High Frequency Ceramic Solutions" Mini 2.45 GHz Antenna Detail Specification: 7/18/2014 General Specifications Part Number Frequency Range Peak Gain Average Gain Return Loss Input Power Impedance Operating Temperature Reel Quanity 2450AT18A100 2400 - 2500 Mhz 0.5 dBi typ. (XZ-V) -0.5 dBi typ. (XZ-V) 9.5 dB min. 2W max. (CW) 50 Ω -40 to +125°C 3,000 Mechanical Dimensions In L 0.126 ± 0.008 W 0.063 ± 0.008 T 0.051 +.004/-.008 a 0.020 ± 0.012 mm 3.20 ± 0.20 1.60 ± 0.20 1.30 +0.1/-0.2 0.50 ± .

2450AT18A100-JohansonTechnology.pdf

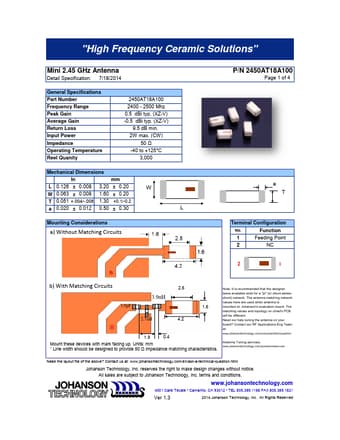

Preview of 2450AT18A100 PDF
2450AT18A100 Datasheet Preview Page 2 2450AT18A100 Datasheet Preview Page 3

Datasheet Details

Part number:

2450AT18A100

Manufacturer:

Johanson Technology

File Size:

389.30 KB

Description:

Mini 2.45 ghz antenna.
