2450BP15Q0100 Datasheet - Johanson Technology

2450BP15Q0100 2.4GHz High Rejection BPF

"High Frequency Ceramic Solutions" 2.4GHz High Rejection BPF with LGA-type terminations for reduced effective footprint Detail Specification: 6/19/2013 Operating Temperature P/N 2450BP15Q0100 Page 1 of 2 -40 to +85°C +5 to +35°C, Humidity 45~75%RH, 18 months, 1 week max after opened 4,000 SAC 305 type is recommended. General Specifications Part Number Frequency (MHz) 2450BP15Q0100 2400 ~ 2500 35 min.@824 ~ 960MHz 30 min.@1545 ~ 1605MHz 35 min.@1710 ~ 1990MHz 30 min.@2170MHz 30 min.@4800 ~.

2450BP15Q0100-JohansonTechnology.pdf

Preview of 2450BP15Q0100 PDF

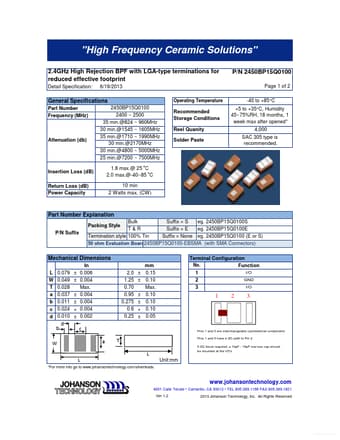

2450BP15Q0100 Datasheet Preview Page 2 2450BP15Q0100 Datasheet Preview Page 3

Datasheet Details

Part number:

2450BP15Q0100

Manufacturer:

Johanson Technology

File Size:

130.32 KB

Description:

2.4ghz high rejection bpf.
