2450BL15B100 Datasheet - Johanson Technology

2450BL15B100 2.45 GHz Balun

“High Frequency Ceramic Solutions” 2.45 GHz Balun Detail Specification P/N 2450BL15B100 Rev. 10/31/01 Page 1 of 2 Part Number 2450BL15B100_ Frequency (MHz) 2400 - 2500 Impedance Unbal. / Bal. 50/100 Ω Insertion Loss 1.0 dB max. Return Loss 9.5 dB min. Phase Difference 180°±10° Amplitude Difference 2.0 dB max. Input Power 3 Watts max Impedance 50 /100 Ω Operating Temperature Range -40 to +85°C Reel Qty 4,000 Mechanical Dimensions L Inches mm 0.079 ± .004 2.0 ± 0.1 W 0.049± .004 1.25.

2450BL15B100-JohansonTechnology.pdf

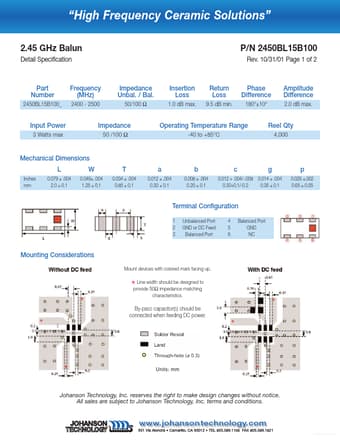

Preview of 2450BL15B100 PDF
2450BL15B100 Datasheet Preview Page 2

Datasheet Details

Part number:

2450BL15B100

Manufacturer:

Johanson Technology

File Size:

157.38 KB

Description:

2.45 ghz balun.
