2450FB14K0001 Datasheet - Johanson Technology

2450FB14K0001 2.45 GHz Balun / Filter Combination

High Frequency Ceramic Solutions 2.45 GHz Balun / Filter Combination Detail Specification: 02/12/07 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB14K0001 2400~2500 50 Ω Conjugate match to CSR BC03, BC04 3.5 dB max. 9.5 dB min. 180° ± 10 1.5 dB max. Operating and Storage Temp. Reel Quantity Power Capacity Attenuation (dB) 45 min.@ 880~960MHz 25 min.@1710~1880 MHz 10 min.@210.

2450FB14K0001_JohansonTechnology.pdf

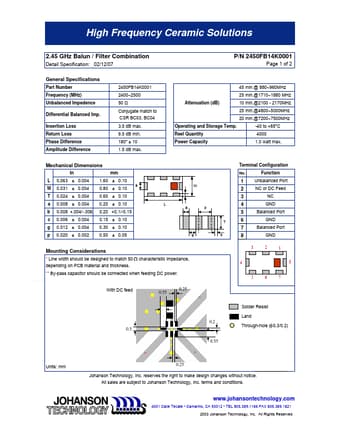

Preview of 2450FB14K0001 PDF
2450FB14K0001 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB14K0001

Manufacturer:

Johanson Technology

File Size:

144.92 KB

Description:

2.45 ghz balun / filter combination.
