2450FB15K0003 Datasheet - Johanson Technology

2450FB15K0003 2.45 GHz Balun / Filter Combination

High Frequency Ceramic Solutions 2.45 GHz, conjugate match for CSR Chipsets BC 04, 05 Detail Specification: 07/17/09 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB15K0003 2400~2500 50 Ω Conjugate match to CSR BC04, BC05 (20-j50) 3 dB max. 9.54 dB min. 180° ± 10 1.5 dB max. Operating Temperature Storage Temperature Power Capacity Reel Quantity Attenuation (dB) 48 min.@ 880~9.

2450FB15K0003_JohansonTechnology.pdf

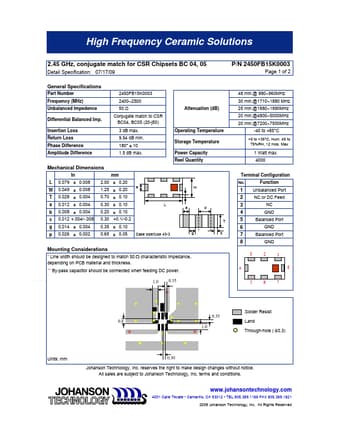

Preview of 2450FB15K0003 PDF
2450FB15K0003 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB15K0003

Manufacturer:

Johanson Technology

File Size:

134.43 KB

Description:

2.45 ghz balun / filter combination.
