2450FB15K0005 Datasheet - Johanson Technology

2450FB15K0005 2.45 GHz Balun / Filter Combination

High Frequency Ceramic Solutions 2.45 GHz, Matched Balun-Filter for CSR BC Series Chipset Detail Specification: 07/15/09 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB15K0005 2400~2500 50 Ω Conjucate match to BC series of CSR 3.5 dB max. 9.5 dB min. 180° ± 10 1.5 dB Operating Temperature Storage Temperature Power Capacity Reel Quantity Attenuation (dB) 48 min.@ 880~960MHz 3.

2450FB15K0005_JohansonTechnology.pdf

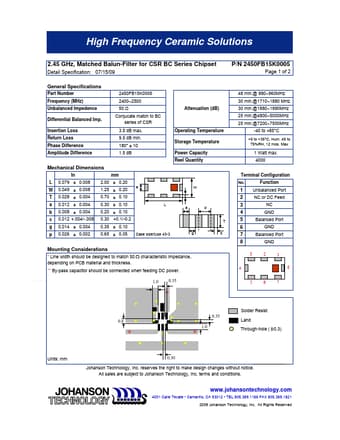

Preview of 2450FB15K0005 PDF
2450FB15K0005 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB15K0005

Manufacturer:

Johanson Technology

File Size:

134.55 KB

Description:

2.45 ghz balun / filter combination.
