2450FB15A0100 Datasheet - Johanson Technology

2450FB15A0100 2.45 GHz Balun / Filter Combination

"High Frequency Ceramic Solutions" 2.45 GHz Filter Balun 50:100Ω EIA 0805 Detail Specification: 06/09/10 General Specifications Part Number Frequency (MHz) Unbalanced Impedance Balanced Impedance Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB15A0100 2400~2500 50 Ω 100Ω 1.5 dB max. 9.5 dB min. 180° ± 10 2.0 dB max. Input Power Reel Quantity Differential Mode Attenuation (dB) Common Mode Attenuation (dB) Operating Temperature Storage Temperature 20 min.@ 4800~5000MHz 20 mi.

2450FB15A0100_JohansonTechnology.pdf

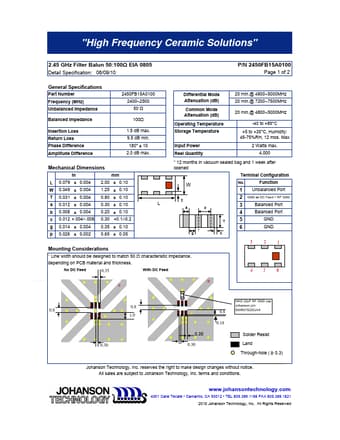

Preview of 2450FB15A0100 PDF
2450FB15A0100 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB15A0100

Manufacturer:

Johanson Technology

File Size:

220.01 KB

Description:

2.45 ghz balun / filter combination.
