2450FB15A050 Datasheet - Johanson Technology

2450FB15A050 2.45 GHz Balun / Filter Combination

"High Frequency Ceramic Solutions" 2.45 GHz Balun / Filter Combination Detail Specification: 12/14/05 P/N 2450FB15A050 Page 1 of 2 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB15A050 2400~2500 50 Ω 50 Ω 1.5 dB max. 9.5 dB min. 180° ± 10 1.0 dB max. Terminal Configuration No. Attenuation (dB) 28 min.@ 2 x F0 20 min.@ 3 X F0 Operating and Storage Temp. Reel Quantity Pow.

2450FB15A050_JohansonTechnology.pdf

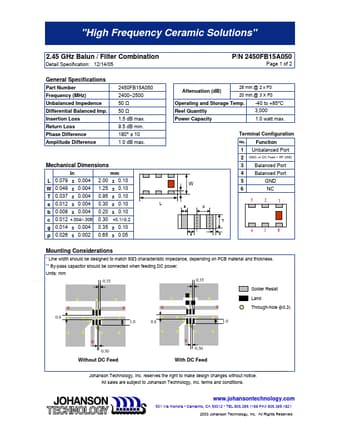

Preview of 2450FB15A050 PDF
2450FB15A050 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB15A050

Manufacturer:

Johanson Technology

File Size:

145.88 KB

Description:

2.45 ghz balun / filter combination.
