2450FB15K0004 Datasheet - Johanson Technology

2450FB15K0004 2.45 GHz Balun / Filter Combination

High Frequency Ceramic Solutions 2.45 GHz Balun / Filter Combination Detail Specification: 07/17/09 General Specifications Part Number Frequency (MHz) Unbalanced Impedence Differential Balanced Imp. Insertion Loss Return Loss Phase Difference Amplitude Difference 2450FB15K0004 2400~2500 50 Ω Conjugate match to CSR BC03, BC04 3.2 dB max. 9.5 dB min. 180° ± 10 1.5 dB max. Operating Temperature Storage Temperature Power Capacity Reel Quantity Attenuation (dB) 48 min.@ 880~960MHz 30 min.@1710~1880 M.

2450FB15K0004_JohansonTechnology.pdf

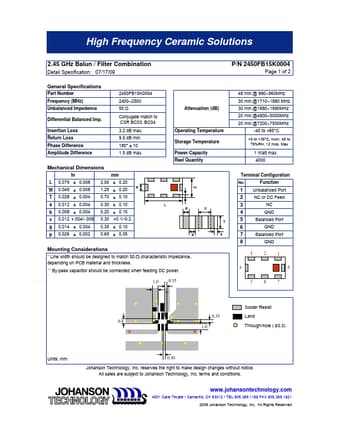

Preview of 2450FB15K0004 PDF
2450FB15K0004 Datasheet Preview Page 2

Datasheet Details

Part number:

2450FB15K0004

Manufacturer:

Johanson Technology

File Size:

133.15 KB

Description:

2.45 ghz balun / filter combination.
