JW5211

Synchronous Step-Down Converter

JW5211 Features

* 2.5V to 6V operating input range Up to 1.2A output current Up to 94% peak efficiency High efficiency (>85%) at light load Internal Soft-Start 1.5MHz switching frequency Input under voltage lockout Short circuit protection Thermal protection Hot-plug in protection Output POK indication (available in

JW5211 General Description

The JW®5211 is a current mode monolithic buck switching regulator. Operating with an input range of 2.5V-6V, the JW5211 delivers 1.2A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power switches provide high efficiency. At light loads, the reg.

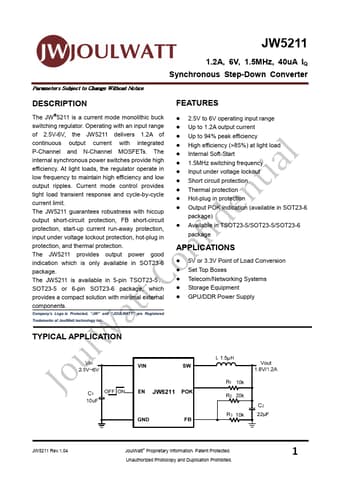

JW5211 Datasheet (1.12 MB)

Preview of JW5211 PDF

Datasheet Details

Part number:

JW5211

Manufacturer:

JoulWatt

File Size:

1.12 MB

Description:

Synchronous step-down converter.
