JW5250A

Synchronous Step-Down Converter

JW5250A Features

* 2.7V to 6.0V operating input range

* Up to 1A output current

* Up to 92% peak efficiency

* Internal soft-start

* 1.5MHz switching frequency

* Input under voltage lockout

* Hot-plug in protection

* Short circuit protection

* Thermal protection

* Available in

JW5250A General Description

The JW®5250A is a monolithic buck switching regulator based on constant on-time (COT) control for fast transient response. Operating with an input range of 2.7V-6.0V, the JW5250A delivers 1A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power .

JW5250A Datasheet (1.16 MB)

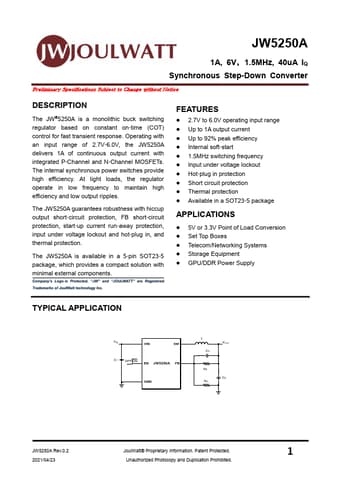

Preview of JW5250A PDF

Datasheet Details

Part number:

JW5250A

Manufacturer:

JoulWatt

File Size:

1.16 MB

Description:

Synchronous step-down converter.
