JW5255A Datasheet, Converter, JoulWatt

JW5255A Features

  • Converter
  • 2.5V to 5.5V operating input range
  • Up to 5A output current
  • Up to 94% peak efficiency
  • High efficiency at light load
  • Adjustable soft-star

PDF File Details

Part number:

JW5255A

Manufacturer:

JoulWatt

File Size:

1.05MB

Download:

📄 Datasheet

Description:

Synchronous step-down converter. The JW®5255A is a monolithic buck switching regulator based on constant on-time (COT) control for fast transient response. Operating

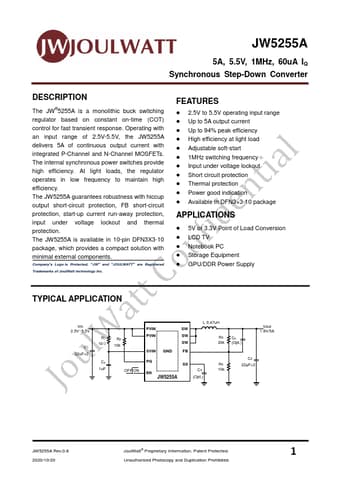

Datasheet Preview: JW5255A 📥 Download PDF (1.05MB)
Page 2 of JW5255A Page 3 of JW5255A

JW5255A Application

  • Applications
  • 5V or 3.3V Point of Load Conversion
  • LCD TV
  • Notebook PC
  • Storage Equipment
  • GPU/DDR Powe
