JW5213

Synchronous Step-Down Converter

JW5213 Features

* 2.5V to 6V operating input range Up to 3A output current Up to 95% peak efficiency Internal Soft-Start 1MHz switching frequency Input under voltage lockout Short circuit protection Over voltage protection Thermal protection Hot-plug in protection Output POK indication RoHS Compliant and Halogen Free

JW5213 General Description

The JW®5213 is a current mode monolithic buck switching regulator. Operating with an input range of 2.5V-6V, the JW5213 delivers 3A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power switches provide high efficiency. At light loads, the regul.

JW5213 Datasheet (149.30 KB)

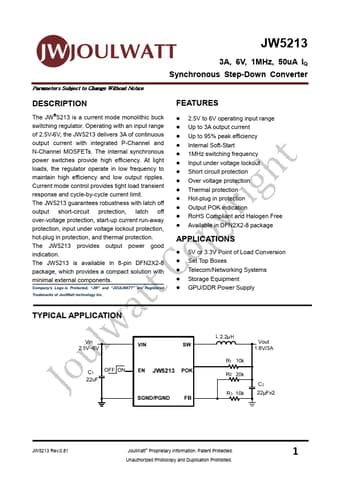

Preview of JW5213 PDF

Datasheet Details

Part number:

JW5213

Manufacturer:

JoulWatt

File Size:

149.30 KB

Description:

Synchronous step-down converter.
