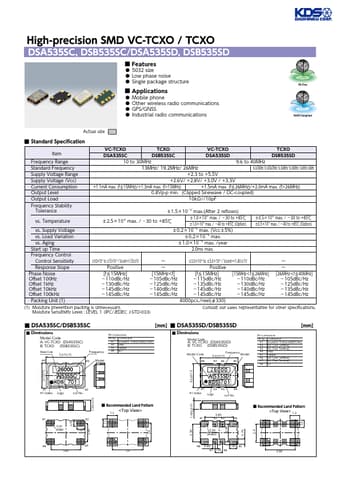

DSA535SD, DSA535SC - High-precision SMD VC-TCXO / TCXO

DSA535SD Description

High-precision SMD VC-TCXO / TCXO DSA535SC, DSB535SC/DSA535SD, DSB535SD * .

DSA535SD Features

* 5032 size
* Low phase noise
* Single package structure

DSA535SD Applications

* Mobile phone
* Other wireless radio communications
* GPS/GNSS
* Industrial radio communications Pb-Free RoHS Compliant Actual size
* Standard Specification Item Frequency Range Standard Frequency Supply Voltage Range Supply Voltage（Vcc） Current Consumpti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DSA535SD, DSA535SC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
DSA535SD, DSA535SC
Manufacturer
KDS
File Size
534.24 KB
Datasheet
DSA535SC-KDS.pdf
Description
High-precision SMD VC-TCXO / TCXO
Note
This datasheet PDF includes multiple part numbers: DSA535SD, DSA535SC.
Please refer to the document for exact specifications by model.
