DSA50C150HB - Schottky Diode

DSA50C150HB Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA50C150HB 1 23 DSA50C150HB VRRM I FAV V.

DSA50C150HB Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA50C150HB Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-247
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 IXYS reserves the right to change limits, conditions and dimensions. © 2013 IXYS all rights res

📥 Download Datasheet

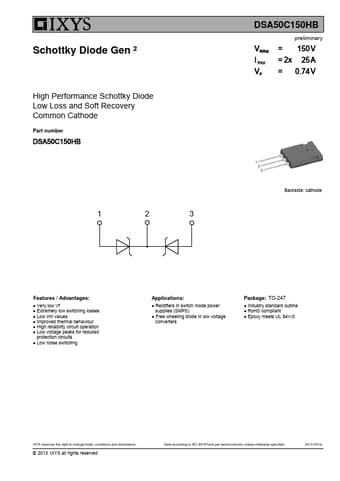

Preview of DSA50C150HB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA50C150HB
Manufacturer
IXYS
File Size
82.55 KB
Datasheet
DSA50C150HB-IXYS.pdf
Description
Schottky Diode
