DSA557-05, DSA557-03 Multiple Output MEMS PCIe Gen1/2/3/4 Clocks

Microchip

Description

DSA557-03/04/05 Multiple Output MEMS PCIe Gen1/2/3/4 Clocks for Automotive .
The DSA557 series of high performance PCI Express clock generators use a proven silicon MEMS technology to provide 100 MHz differential output clocks.

📥 Download Datasheet

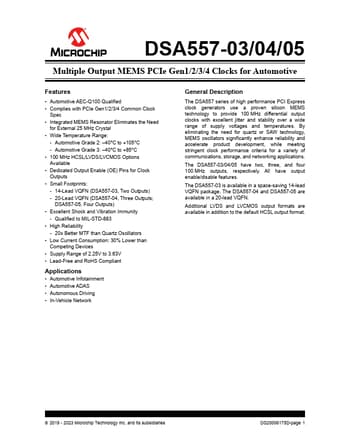

DSA557-05 Datasheet Preview — This datasheet PDF includes multiple part numbers: DSA557-05, DSA557-03. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DSA557-05, DSA557-03
Manufacturer: Microchip ↗
File Size: 1.25 MB
Datasheet: DSA557-03-Microchip.pdf
Description: Multiple Output MEMS PCIe Gen1/2/3/4 Clocks
Note: This datasheet PDF includes multiple part numbers: DSA557-05, DSA557-03.
Please refer to the document for exact specifications by model.

Features

* Automotive AEC-Q100 Qualified
* Complies with PCIe Gen1/2/3/4 Common Clock Spec
* Integrated MEMS Resonator Eliminates the Need for External 25 MHz Crystal
* Wide Temperature Range: - Automotive Grade 2:
* 40°C to +105°C - Automotive Grade 3:
* 40°C to

Applications

* Automotive Infotainment
* Automotive ADAS
* Autonomous Driving
