DSA50C100QB - 2x 25A Schottky Rectifier Diode

DSA50C100QB Description

DSA50C100QB 100 V, 2x 25 A Schottky Rectifier Diode Pinout Diagram (TO-3P) tab Diode Datasheet RoHS Pb .
Very low Vf. Extremely low switching losses. Low Irm values. Improved thermal behavior. High reliability circuit operation.

DSA50C100QB Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters A C A A C A C: Cathode; A: Anode; tab: Cathode © 2022 Littelfuse, Inc. 1 Specifications are subject to change without notice. Revised: XZ 10/28/2022 DSA50C100QB Diode Datasheet M

📥 Download Datasheet

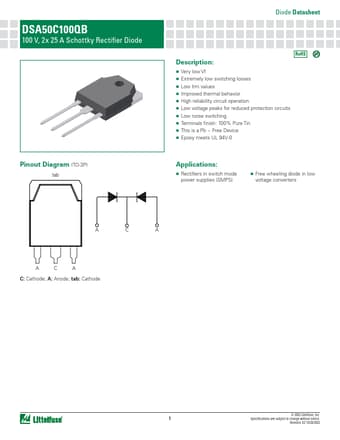

Preview of DSA50C100QB PDF
datasheet Preview Page 2 datasheet Preview Page 3
