DSA5001 - Silicon PNP epitaxial planar type

Datasheet Summary

Features

  • High forward current transfer ratio hFE with excellent linearity.
  • Low collector-emitter saturation voltage VCE(sat).
  • Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL: Level 1 compliant).
  • Marking Symbol: A1.
  • Packaging DSA5001×0L Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard).
  • Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emi.

📥 Download Datasheet

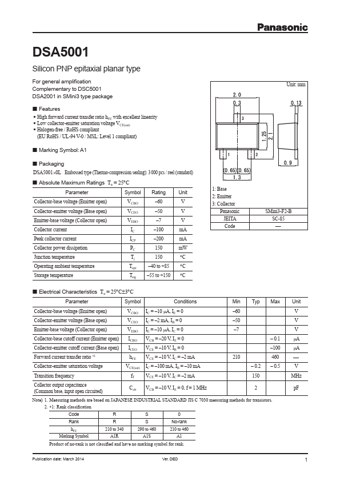

Datasheet preview – DSA5001

Datasheet Details

Part number DSA5001
Manufacturer Panasonic
File Size 460.69 KB
Description Silicon PNP epitaxial planar type
Datasheet download datasheet DSA5001 Datasheet
Additional preview pages of the DSA5001 datasheet.

📁 Similar Datasheet

Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
DSA5001 Silicon PNP epitaxial planar type For general amplification Complementary to DSC5001 DSA2001 in SMini3 type package  Features  High forward current transfer ratio hFE with excellent linearity  Low collector-emitter saturation voltage VCE(sat)  Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)  Marking Symbol: A1  Packaging DSA5001×0L Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard)  Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Peak collector current Collector power dissipation Junction temperature Operating ambient temperature Storage temperature VCBO VCEO VEBO IC ICP PC
