KIA6206F - DUAL HEADPHONE DRIVER

Product Overview

KEC

📥 Download Datasheet

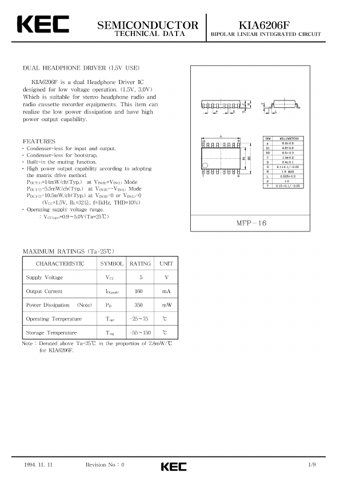

KIA6206F DUAL HEADPHONE DRIVER by KEC - Datasheet Preview — Datasheet preview – KIA6206F

Datasheet Details

Part number	KIA6206F
Manufacturer	KEC
File Size	255.69 KB
Description	DUAL HEADPHONE DRIVER
Datasheet	KIA6206F Datasheet
Additional preview pages of the KIA6206F datasheet.

Product details

Features

Condenser-less for input and output.
Condenser-less for bootstrap.
Built-in the muting function.
High power output capability according to adopting the matrix drive method. PouTd)=14mW/ch(Typ. ) at VIN(R)=VIN(L) Mode PouT(2)=5.5mW/ch(Typ. ) at V I N ( R ) = - V I N ( L ) Mode POUT(3)=10.5mW/ch(Typ. ) at VIN(R)=0 or VIN(L)=0 (Vcc=1.5V, RL=32 Q, f=lkHz, THD=10%).
Operating supply voltage range. : Vcc(opr)=0.9 ~ 5.0V(Ta=25°C).
