KIA6221AH Datasheet - KEC

30W BTL DUAL AUDIO POWER AMPLIFIER

KIA6221AH Features

* due to the temperature rise at the high output can also be reduced. This stereo audio power IC, designed for car audio use, has two built-in channels to reduce the characteristic difference between L and R channels. FEATURES

* Low Thermal Resistance : 6 j-c=1.5°C/W (Infinite heat sink)

* Hig

KIA6221AH General Description

is made only on the single channel.) 1. Voltage Gain Adjustment Amp 1 :Pre *Amp Amp2:Phase Amp Amp3:Power Amp(Flat-Amp) Amp4:Power Amp(Flat *Amp) Fig -1 This IC has the amplifier construction as shown in Fig.l. The pre-Amp(Amp 1) is provided to the primary stage, and the input volt.

KIA6221AH Datasheet (348.32 KB)

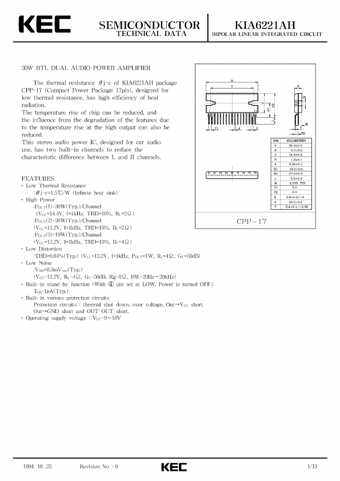

KIA6221AH Datasheet Preview — Preview of KIA6221AH PDF

Datasheet Details

Part number:

KIA6221AH

Manufacturer:

KEC

File Size:

348.32 KB

Description:

30w btl dual audio power amplifier.
SEMICONDUCTOR KIA6221AH TECHNICAL DATA BIPOLAR LINEAR INTEGRATED CIRCUIT 30W BTL DUAL AUDIO POWER AMPLIFIER The thermal resistance 0 j - c of KIA6.
