KTC2801
KEC
75.42 KB

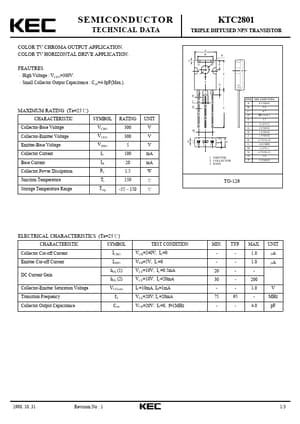

Triple diffused npn transistor.
SEMICONDUCTOR
TECHNICAL DATA
COLOR TV CHROMA OUTPUT APPLICATION. COLOR TV HORIZONTAL DRIVE APPLICATION.
FEAUTRES ᴌHigh Voltage : VCEO=300V. ᴌSmall Col.
