KTC2815L, KTC2815D - EPITAXIAL PLANAR NPN TRANSISTOR

KTC2815L Description

SEMICONDUCTOR TECHNICAL DATA KTC2815D/L EPITAXIAL PLANAR NPN TRANSISTOR POWER AMPLIFIER APPLICATION.POWER SWITCHING APPLICATION..

KTC2815L Features

* Low Collector Saturation Voltage : VCE(sat)=0.5V(Max. ) (IC=1A) High Speed Switching Time : tstg=1 S(Typ. ) Complementary to KTA1718D/L. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current VCBO VCEO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KTC2815L, KTC2815D. Please refer to the document for exact specifications by model.

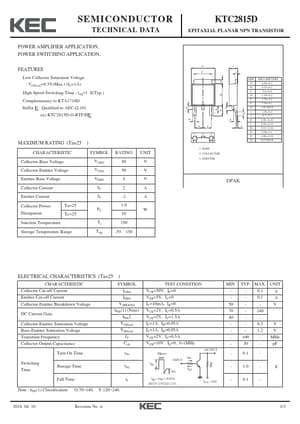

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC2815L, KTC2815D
Manufacturer
KEC
File Size
47.40 KB
Datasheet
KTC2815D-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: KTC2815L, KTC2815D.
Please refer to the document for exact specifications by model.
