Part number:
KTC2803
Manufacturer:
KEC
File Size:
69.46 KB
Description:
Epitaxial planar npn transistor.

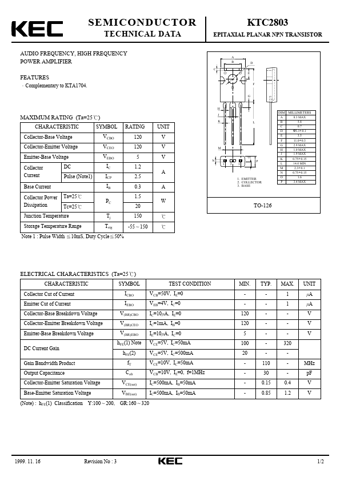

* ᴌComplementary to KTA1704. MAXIMUM RATING (Ta=25ᴱ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current DC Pulse (Note1) Base Current VCBO VCEO VEBO IC ICP IB 120 120 5 1.2 2.5 0.3 Collector Power Ta=25ᴱ Dissipation Tc=25ᴱ
KTC2803
KEC
69.46 KB
Epitaxial planar npn transistor.
