Part number:
KTC2804
Manufacturer:
KEC
File Size:
389.76 KB
Description:
Epitaxial planar npn transistor.

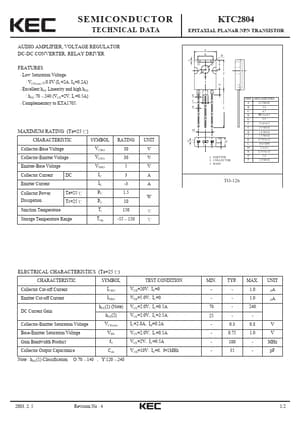

* Low Saturation Voltage. : VCE(sat) 0.8V (IC=2A, IB=0.2A) Excellent hFE Linearity and high hFE. : hFE:70 240 (VCE=2V, IC=0.5A) Complementary to KTA1705. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current DC Em
KTC2804
KEC
389.76 KB
Epitaxial planar npn transistor.
