KTD2161 EPITAXIAL PLANAR NPN TRANSISTOR

KTD2161 Description

SEMICONDUCTOR TECHNICAL DATA HIGH VOLTAGE APPLICATION TV, MONITOR VERTICAL OUTPUT APPLICATION DRIVER STAGE APPLICATION COROR TV CLASS B SOUND OUTPUT A.

KTD2161 Features

* ᴌHigh Breakdown Voltage : VCEO=180V(Min. ) ᴌHigh Transition Frequency : fT=100MHz(Typ. ) ᴌHigh Current : IC(max)=2A ᴌComplementary to KTB1469. MAXIMUM RATING (Ta=25ᴱ) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Di

📥 Download Datasheet

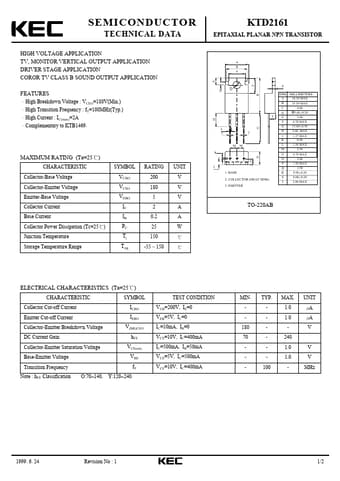

Preview of KTD2161 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KTD2161
Manufacturer
KEC
File Size
69.12 KB
Datasheet
KTD2161-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
