2SC4061K - Chroma amplifier transistor

Datasheet Summary

Features

  • +0.1 2.4-0.1 High breakdown voltage. Low collector output capacitance. Ideal for chroma circuit. +0.1 1.3-0.1 1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 300 300 5 100 0.2 150 -55 to +150 Un.

📥 Download Datasheet

Datasheet preview – 2SC4061K

Datasheet Details

Part number 2SC4061K
Manufacturer Kexin
File Size 53.57 KB
Description Chroma amplifier transistor
Datasheet download datasheet 2SC4061K Datasheet
Additional preview pages of the 2SC4061K datasheet.

📁 Similar Datasheet

  • 2SC4061K - Chroma Amplifier Transistor (Rohm)
  • 2SC4060 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4060 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4064 - Silicon NPN Transistor (Sanken electric)
  • 2SC4064 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4065 - Silicon NPN Transistor (Sanken electric)
  • 2SC4067 - PNP / NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)
  • 2SC400 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SC4001 - Silicon NPN Transistor (NEC)
  • 2SC4001 - Silicon NPN Power Transistor (Inchange Semiconductor)
Other Datasheets by Kexin
  • 2SC4003 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC4027 - NPN Epitaxial Planar Silicon Transistor
  • 2SC4081 - General Purpose Transistor
  • 2SC4098 - High-frequency Amplifier Transistor
  • 2SC4102 - High-voltage Amplifier Transistor
  • 2SC4104 - NPN Epitaxial Planar Silicon Transistor
  • 2SC4115 - Transistor
  • 2SC4115-HF - NPN Transistors

Full PDF Text Transcription

Click to expand full text

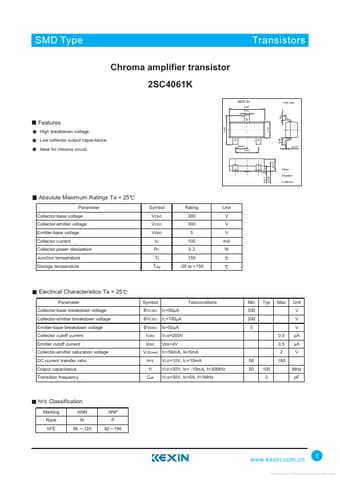

SMD Type Chroma amplifier transistor 2SC4061K SOT-23 +0.1 2.9-0.1 +0.1 0.4-0.1 Transistors Unit: mm Features +0.1 2.4-0.1 High breakdown voltage. Low collector output capacitance. Ideal for chroma circuit. +0.1 1.3-0.1 1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 300 300 5 100 0.
