2SD1782K - Power Transistor

Kexin

📥 Download Datasheet

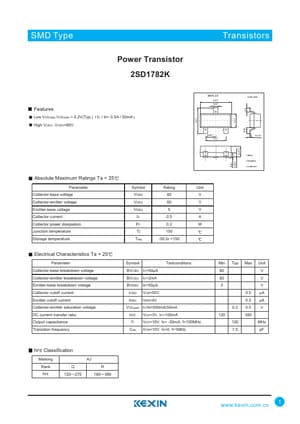

2SD1782K Datasheet Preview — Preview of 2SD1782K PDF

Datasheet Details

Part number	2SD1782K
Manufacturer	Kexin
File Size	32.75 KB
Description	Power Transistor
Datasheet	2SD1782K-Kexin.pdf

2SD1782K Product details

Features

Low VCE(sat). VCE(sat) = 0.2V(Typ. ) IC / IB= 0.5A / 50mA High VCEO, VCEO=80V. +0.12.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 12 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.10.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 80 80 5 0.5 0.2 150 -55 to +150 U.
