Datasheet Details

Part number:

PSA23-11YWA

Manufacturer:

Kingbright Corporation

File Size:

265.98 KB

Description:

56.8mm (2.3 inch) 16 segment single digit alphanumeric display.

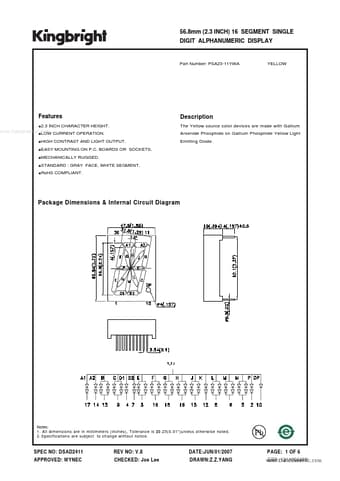

PSA23-11YWA, 56.8mm (2.3 INCH) 16 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY

The Yellow source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode.

Package Dimensions & Internal Circuit Diagram Notes: 1.

All dimensions are in millimeters (inches), Tolerance is ±0 .25(0.01")unless otherwise noted.

2.

Specifications are sub
