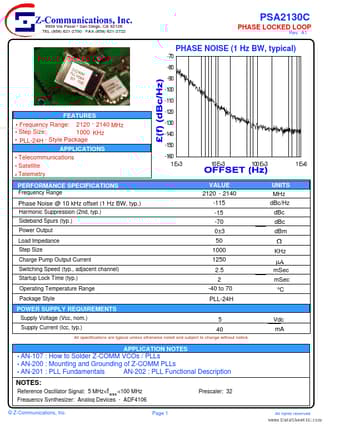

PSA2130C Datasheet, Loop, Z-Communications

PSA2130C Features

• Loop
• Frequency Range: 2120 - 2140 MHz www.DataSheet4U.com
• Step Size: 1000 KHz
• PLL-24H - Style Package APPLICATIONS
• Telecommunications
• Satell

PDF File Details

Part number:

PSA2130C

Manufacturer:

Z-Communications

File Size:

106.59kb

Download:

📄 Datasheet

Description:

Low cost - high performance phase locked loop. Prescaler: 32 NOTES: Reference Oscillator Signal: 5 MHz

PSA2130C Application

• Applications
• Telecommunications
• Satellite
• Telemetry PERFORMANCE SPECIFICATIONS Frequency Range -120 -130 -140 -150 -1
