PSA2100C, PSA2100C_Z, LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

PSA2100C 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) .
Prescaler: 32 NOTES: Reference Oscillator Signal: 5 MHz.

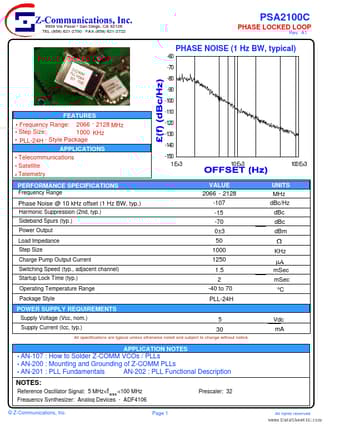

datasheet Preview Page 1 from Datasheet4u.com

PSA2100C_Z-Communications.pdf

PSA2100C Datasheet Preview — This datasheet PDF includes multiple part numbers: PSA2100C, PSA2100C_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PSA2100C, PSA2100C_Z

Manufacturer:

Z-Communications

File Size:

106.40 KB

Description:

LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

Note:

This datasheet PDF includes multiple part numbers: PSA2100C, PSA2100C_Z.
Please refer to the document for exact specifications by model.

Features

* Frequency Range: 2066 - 2128 MHz www. DataSheet4U. com
* Step Size: 1000 KHz

Applications

* Telecommunications
* Satellite
* Telemetry PERFORMANCE SPECIFICATIONS Frequency Range -110 -120 -130 -140 -150 1 E+3 10 E+3 100 E+3 VALUE 2066 - 2128 -107 -15 -70 0±3 50 1000 1250 1.5 2 -40 to 70 PLL-24H 5 30 APPLICATION NOTES Phase Noise @ 10 kHz offset (1 Hz BW, typ. )
