PSA2570C, PSA2570C_Z Datasheet - Z-Communications

PSA2570C Telecommunications - Satellite

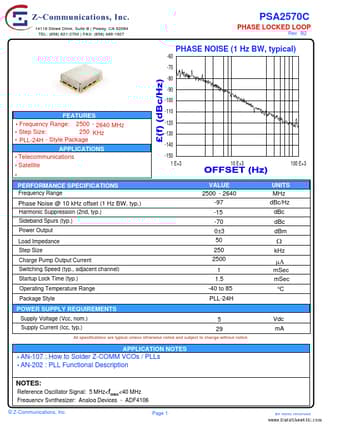

NOTES: Reference Oscillator Signal: 5 MHz< <40 MHz Frequency Synthesizer: Analog Devices - ADF4106 © Z-Communications, Inc. Page 1 All rights reserved PHASE LOCKED LOOP VCO TUNING CURVE, typ. 2690 2670 2650 2630 2610 2590 2570 2550 2530 2510 2490 2470 2450 2430 2410 0 0.5 1 1.5 2 2.5 3 3.5 PSA257.

PSA2570C Features

* Frequency Range: 2500 - 2640 MHz

* Step Size: 250 KHz

* PLL-24H - Style Package APPLICATIONS

* Telecommunications

* Satellite

* PERFORMANCE SPECIFICATIONS Frequency Range -110 -120 -130 -140 -150 1 E+3 10 E+3 100 E+3 VALUE 2500 - 2640 -97 -15 -70 0

PSA2570C_Z-Communications.pdf

PSA2570C Datasheet Preview — This datasheet PDF includes multiple part numbers: PSA2570C, PSA2570C_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PSA2570C, PSA2570C_Z

Manufacturer:

Z-Communications

File Size:

102.74 KB

Description:

Telecommunications - satellite.

Note:

This datasheet PDF includes multiple part numbers: PSA2570C, PSA2570C_Z.
Please refer to the document for exact specifications by model.
