PSA2444A

Telecommunications - Satellite . Telemetry

PSA2444A Datasheet (103.69 KB)

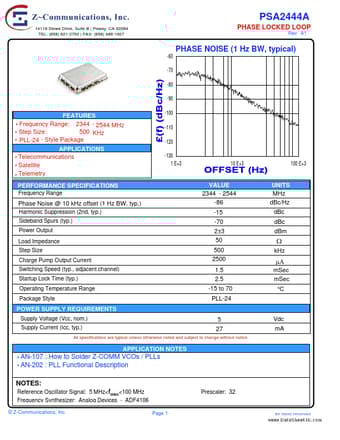

Preview of PSA2444A PDF Datasheet

Datasheet Details

Part number:

PSA2444A

Manufacturer:

Z-Communications

File Size:

103.69 KB

Description:

Telecommunications - satellite . telemetry

PSA2444A Features

* Frequency Range: 2344 - 2544 MHz

* Step Size: 500 KHz

* PLL-24 - Style Package APPLICATIONS

* Telecommunications

* Satellite

* Telemetry PERFORMANCE SPECIFICATIONS Frequency Range -100 -110 -120 -130 1 E+3 10 E+3 100 E+3 VALUE 2344 - 2544 -86 -15

PSA2444A General Description

NOTES: Reference Oscillator Signal: 5 MHz< <100 MHz Frequency Synthesizer: Analog Devices - ADF4106 © Z-Communications, Inc. Page 1 Prescaler: 32 All rights reserved PHASE LOCKED LOOP VCO TUNING CURVE, typ. 2665 2635 2605 2575 2545 2515 2485 2455 2425 2395 2365 2335 2305 2275 2245 2215 0 0.5 1 1.
