SC36-11SRWA Datasheet - Kingbright

SC36-11SRWA - Single Digit Numeric Display

The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode.

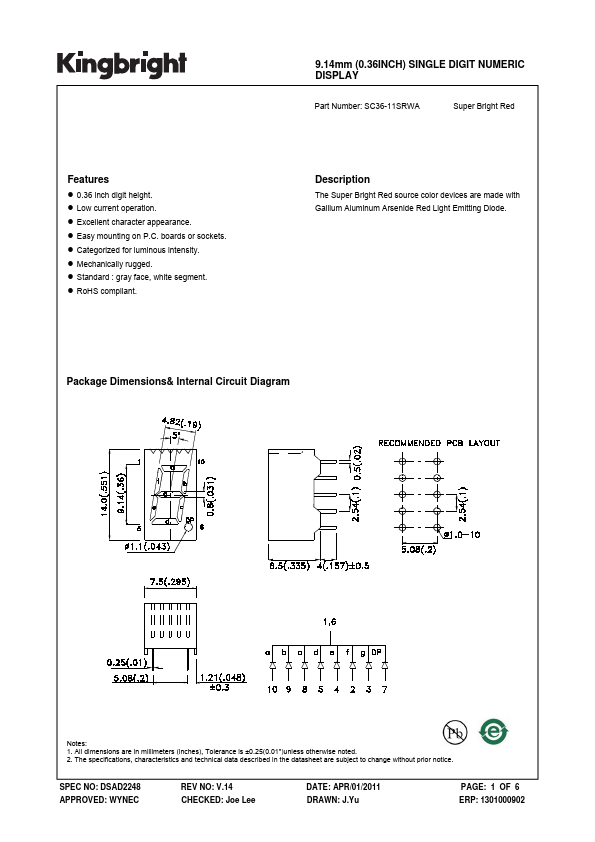

Package Dimensions& Internal Circuit Diagram Notes: 1.

All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2.

The specifications, characteristics and

SC36-11SRWA Features

* z 0.36 inch digit height. z Low current operation. z Excellent character appearance. z Easy mounting on P.C. boards or sockets. z Categorized for luminous intensity. z Mechanically rugged. z Standard : gray face, white segment. z RoHS compliant. 9.14mm (0.36INCH) SINGLE DIGIT NUMERIC DISPLAY Part

SC36-11SRWA-Kingbright.pdf

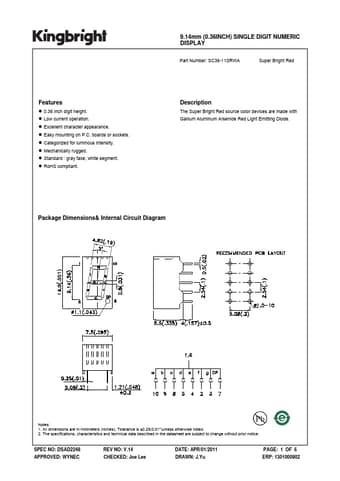

Preview of SC36-11SRWA PDF

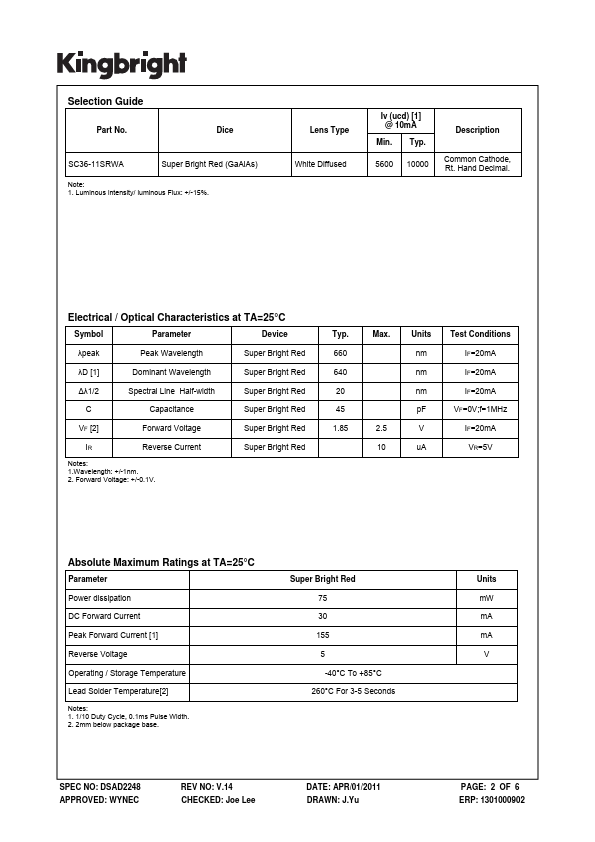

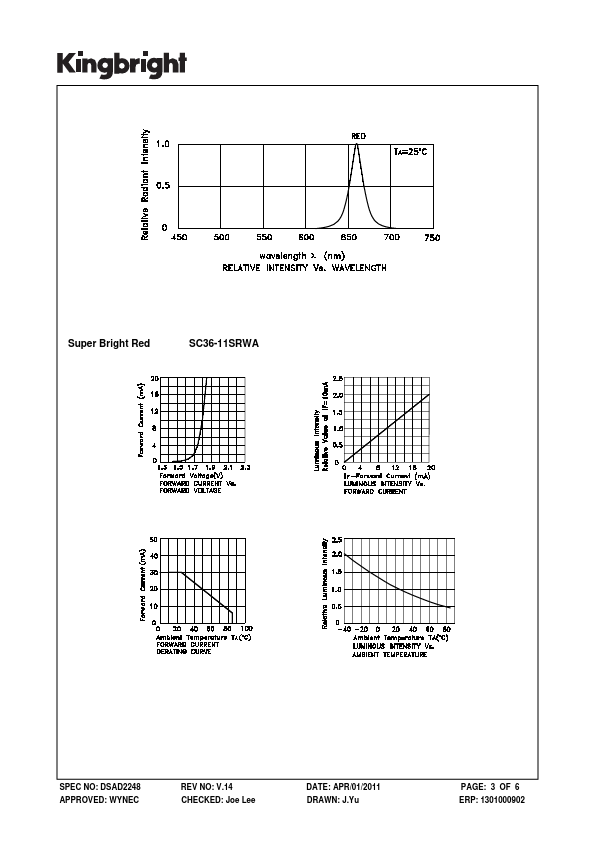

SC36-11SRWA Datasheet Preview Page 2 SC36-11SRWA Datasheet Preview Page 3

Datasheet Details

Part number:

SC36-11SRWA

Manufacturer:

Kingbright

File Size:

228.09 KB

Description:

Single digit numeric display.
