SC3610 - FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER

SC3610 Description

SC3610 FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER .
The SC3610 is a frequency and clock display driver used for displaying FM/AM radio frequency or a 12 hour alarm clock.

SC3610 Features

* FM input with pre-scalar for radio frequency up to 150 MHz
* AM input for radio frequency up to 30 MHz
* 3 common, 13 segment, 1/3 bias LCD display drivers which supports 4 digits LCD display
* On chip oscillator for external 32.768kHz crystal
* 10.7 MHz / 70 kHz I. F. frequency

📥 Download Datasheet

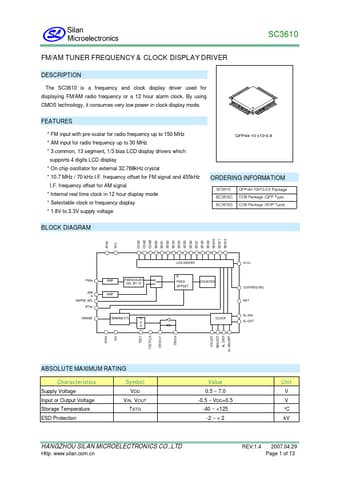

Preview of SC3610 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC3610
Manufacturer
Silan Semiconductors
File Size
210.01 KB
Datasheet
SC3610-SilanSemiconductors.pdf
Description
FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER
