SC3610D, SC3610, FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER

SC3610 FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER .
The SC3610 is a frequency and clock display driver used for displaying FM/AM radio frequency or a 12 hour alarm clock.

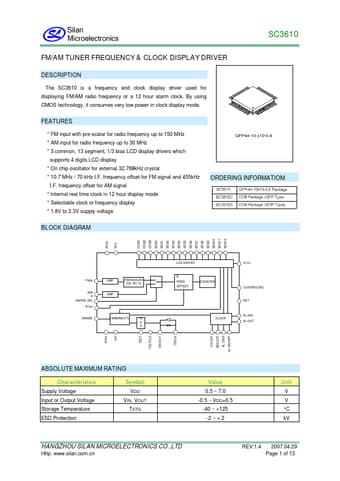

datasheet Preview Page 1 from Datasheet4u.com

SC3610-SilanSemiconductors.pdf

SC3610D Datasheet Preview — This datasheet PDF includes multiple part numbers: SC3610D, SC3610. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SC3610D, SC3610

Manufacturer:

Silan Semiconductors

File Size:

210.01 KB

Description:

FM/AM TUNER FREQUENCY & CLOCK DISPLAY DRIVER

Note:

This datasheet PDF includes multiple part numbers: SC3610D, SC3610.
Please refer to the document for exact specifications by model.

Features

* FM input with pre-scalar for radio frequency up to 150 MHz
* AM input for radio frequency up to 30 MHz
* 3 common, 13 segment, 1/3 bias LCD display drivers which supports 4 digits LCD display
* On chip oscillator for external 32.768kHz crystal
* 10.7 MHz / 70 kHz I. F. frequency
