ML610Q304 - 8-bit Microcontroller

Name: ML610Q304
SKU: ML610Q304-916740

LAPIS Semiconductor

📥 Download Datasheet

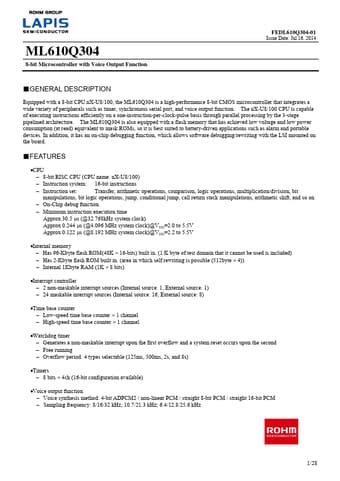

ML610Q304 Datasheet Preview — Preview of ML610Q304 PDF

Datasheet Details

Part number	ML610Q304
Manufacturer	LAPIS Semiconductor
File Size	604.91 KB
Description	8-bit Microcontroller
Datasheet	ML610Q304-LAPISSemiconductor.pdf

ML610Q304 Product details

Description

Equipped with a 8-bit CPU nX-U8/100, the ML610Q304 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as timer, synchronous serial port, and voice output function.

Features

CPU.
8-bit RISC CPU (CPU name: nX-U8/100).
Instruction system: 16-bit instructions.
Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulations, arithmetic shift, and so on.
On-Chip debug function.
Minimum instruction execution time Approx 30.5 µs (@32.768kHz system clock) Approx 0.244 µs (@4.
