ML610Q340 - 8-bit Microcontroller

LAPIS Semiconductor

📥 Download Datasheet

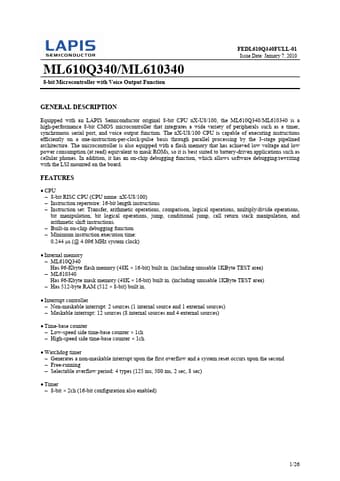

ML610Q340 Datasheet Preview — Preview of ML610Q340 PDF

Datasheet Details

Part number	ML610Q340
Manufacturer	LAPIS Semiconductor
File Size	444.98 KB
Description	8-bit Microcontroller
Datasheet	ML610Q340-LAPISSemiconductor.pdf

ML610Q340 Product details

Description

Equipped with an LAPIS Semiconductor original 8-bit CPU nX-U8/100, the ML610Q340/ML610340 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as a timer, synchronous serial port, and voice output function.

Features

CPU  8-bit RISC CPU (CPU name: nX-U8/100)  Instruction repertoire: 16-bit length instructions  Instruction set: Transfer, arithmetic operations, comparison, logical operations, multiply/divide operations, bit manipulation, bit logical operations, jump, conditional jump, call return stack manipulation, and arithmetic shift instructions.  Built-in on-chip debugging function  Minimum instruction execution time: 0.244 s (@ 4.096 MHz system clock).
Internal memory  ML610Q340 Has 96-.
