ML610Q347 - 8-bit Microcontroller

LAPIS Semiconductor

📥 Download Datasheet

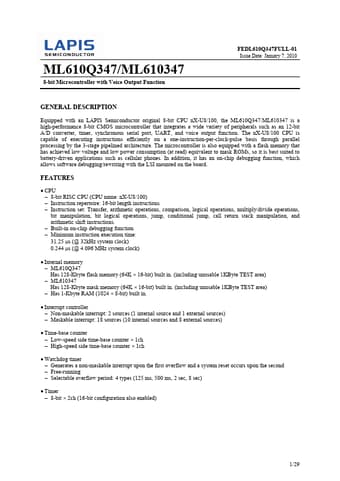

ML610Q347 Datasheet Preview — Preview of ML610Q347 PDF

Datasheet Details

Part number	ML610Q347
Manufacturer	LAPIS Semiconductor
File Size	486.84 KB
Description	8-bit Microcontroller
Datasheet	ML610Q347-LAPISSemiconductor.pdf

ML610Q347 Product details

Description

Equipped with an LAPIS Semiconductor original 8-bit CPU nX-U8/100, the ML610Q347/ML610347 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as an 12-bit A/D converter, timer, synchronous serial port, UART, and voice output function.

Features

CPU  8-bit RISC CPU (CPU name: nX-U8/100)  Instruction repertoire: 16-bit length instructions  Instruction set: Transfer, arithmetic operations, comparison, logical operations, multiply/divide operations, bit manipulation, bit logical operations, jump, conditional jump, call return stack manipulation, and arithmetic shift instructions.  Built-in on-chip debugging function  Minimum instruction execution time: 31.25 s (@ 32kHz system clock) 0.244 s (@ 4.096 MHz system clock).
Int.
