ML610Q380 - 8-bit Microcontroller

LAPIS Semiconductor

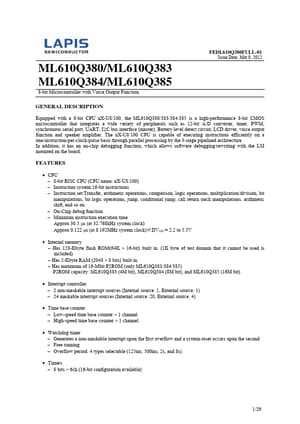

The ML610Q380 by LAPIS Semiconductor is a 8-bit Microcontroller. Below is the official datasheet preview.

Datasheet Details

Part number	ML610Q380
Manufacturer	LAPIS Semiconductor
File Size	459.29 KB
Description	8-bit Microcontroller
Datasheet	ML610Q380-LAPISSemiconductor.pdf
Additional preview pages of the ML610Q380 datasheet.

ML610Q380 Product details

Description

Equipped with a 8-bit CPU nX-U8/100, the ML610Q380/383/384/385 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as 12-bit A/D converter, timer, PWM, synchronous serial port, UART, I２C bus interface (master), Battery level detect circuit, LCD driver, voice output function and speaker amplifier.

Features

CPU.
8-bit RISC CPU (CPU name: nX-U8/100).
Instruction system:16-bit instructions.
Instruction set:Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulations, arithmetic shift, and so on.
On-Chip debug function.
Minimum instruction execution time Approx 30.5 μs (at 32.768kHz system clock) Approx 0.122 μs (at 8.192MHz.
