ML610Q383

8-bit Microcontroller

LAPIS Semiconductor

ML610Q383 Features

* CPU

* 8-bit RISC CPU (CPU name: nX-U8/100)

* Instruction system:16-bit instructions

* Instruction set:Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return

ML610Q383 General Description

Equipped with a 8-bit CPU nX-U8/100, the ML610Q380/383/384/385 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as 12-bit A/D converter, timer, PWM, synchronous serial port, UART, I２C bus interface (master), Battery level detect circuit, LCD driver.

ML610Q383 Datasheet (459.29 KB)

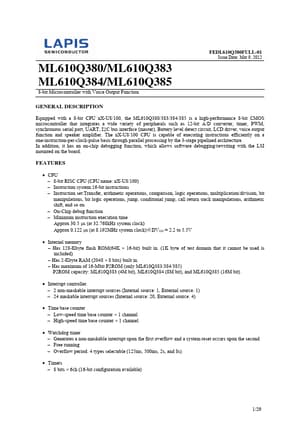

ML610Q383 Datasheet Preview — Preview of ML610Q383 PDF

Datasheet Details

Part number:

ML610Q383

Manufacturer:

LAPIS Semiconductor

File Size:

459.29 KB

Description:

8-bit microcontroller.
ML610Q380/ML610Q383 FEDL610Q380FULL-01 Issue Date: Mar 9, 2012 ML610Q384/ML610Q385 8-bit Microcontroller with Voice Output Function I GENERAL DESCRI.
