APR-B420L - AC Current transducer APR-B420L

APR-B420L Description

AC Current transducer APR-B420L Split core transducer for the electronic measurement distorted AC waveforms current, with galvanic isolation between t.

APR-B420L Features

* VFD and SCR waveforms current measurement
* True RMS output
* Split core type
* Loop powered 4-20mA current output
* DIN mounting & Panel mounting
* Eliminates insertion loss
* Switch selectable ranges APR 50 B420L APR 100 B420L APR 200 B420

APR-B420L Applications

* VFD Controlled Loads: VFD output indicates how the motor and attached load are operating.
* SCR Controlled Loads: Acurate measurement of phase angle fired or burst fired (time proportioned) General data TA TS m Ambient operating temperature Ambient storage temperature Mass Protect

📥 Download Datasheet

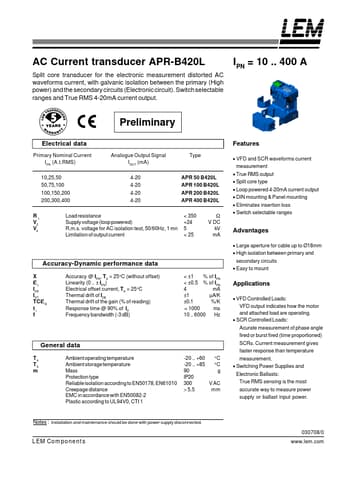

Preview of APR-B420L PDF
datasheet Preview Page 2

Datasheet Details

Part number
APR-B420L
Manufacturer
LEM
File Size
57.11 KB
Datasheet
APR-B420L_LEM.pdf
Description
AC Current transducer APR-B420L
