APR200-B10 AC Current transducer APR-B10

AC Current transducer APR-B10 Split core transducer for the electronic measurement distorted AC waveforms current, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit). Switch selectable ranges and True RMS 0-5V and 0-10V switch selectable voltage output. IPN = 10 .. 400 A Preliminary Electrical data Primary Nominal Current IPN (A.t.RMS) 10,25,50 50,75,100 100,150,200 200,300,400 RL VC Vd Analogue Output Signal VOUT (V) 0-5V or 0-10V 0-5V or .

APR200-B10 Features

* VFD and SCR waveforms current measurement

* True RMS output

* Split core type

* 5V & 10V switch selectable voltage output.

* DIN mounting & Panel mounting

* Eliminates insertion loss

* Switch selectable ranges APR 50 B10 APR 100 B10 APR 200

APR200-B10 Datasheet (56.75 KB)

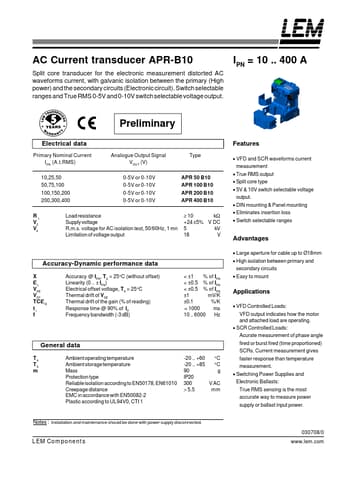

APR200-B10 Datasheet Preview — Preview of APR200-B10 PDF

Datasheet Details

Part number:

APR200-B10

Manufacturer:

LEM

File Size:

56.75 KB

Description:

Ac current transducer apr-b10.
