APR100-B420L, AC Current transducer APR-B420L

AC Current transducer APR-B420L Split core transducer for the electronic measurement distorted AC waveforms current, with galvanic isolation between t.

APR100-B420L_LEM.pdf

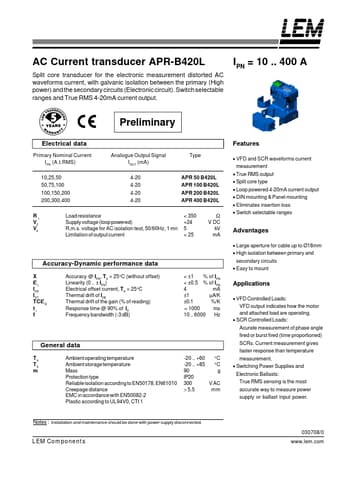

APR100-B420L Datasheet Preview — Preview of APR100-B420L PDF

Datasheet Details

Part number:

APR100-B420L

Manufacturer:

LEM

File Size:

57.11 KB

Description:

AC Current transducer APR-B420L

Features

* VFD and SCR waveforms current measurement
* True RMS output
* Split core type
* Loop powered 4-20mA current output
* DIN mounting & Panel mounting
* Eliminates insertion loss
* Switch selectable ranges APR 50 B420L APR 100 B420L APR 200 B420

Applications

* VFD Controlled Loads: VFD output indicates how the motor and attached load are operating.
* SCR Controlled Loads: Acurate measurement of phase angle fired or burst fired (time proportioned) General data TA TS m Ambient operating temperature Ambient storage temperature Mass Protect
