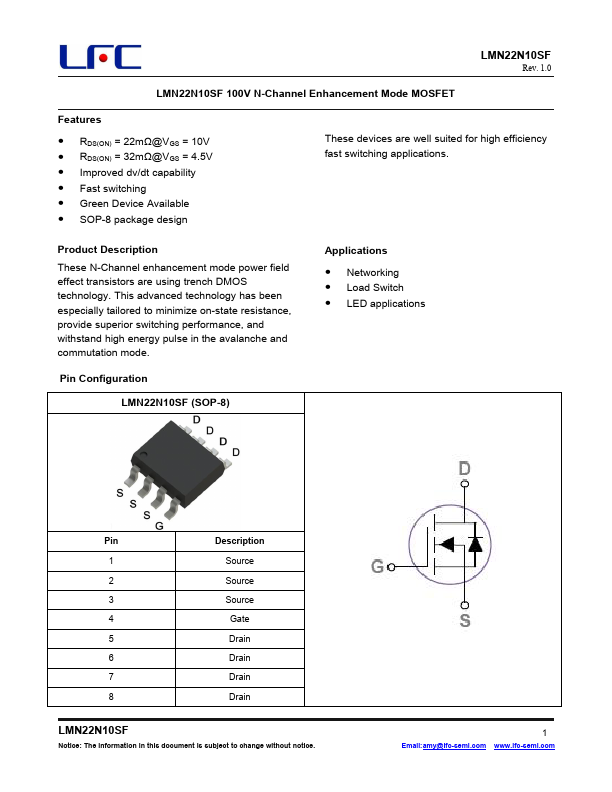

LMN22N10SF - 100V N-Channel Enhancement Mode MOSFET

LMN22N10SF Datasheet Preview — Preview of LMN22N10SF PDF

Datasheet Details

Part number	LMN22N10SF
Manufacturer	LFC semi
File Size	552.87 KB
Description	100V N-Channel Enhancement Mode MOSFET
Datasheet	LMN22N10SF-LFCsemi.pdf

LMN22N10SF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Networking Load Switch LED applications Pin Description 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 D

Features

RDS(ON) = 22mΩ@VGS = 10V.
RDS(ON) = 32mΩ@VGS = 4.5V.
Improved dv/dt capability.
Fast switching.
Green Device Available.
SOP-8 package design These devices are well suited for high efficiency fast switching.
